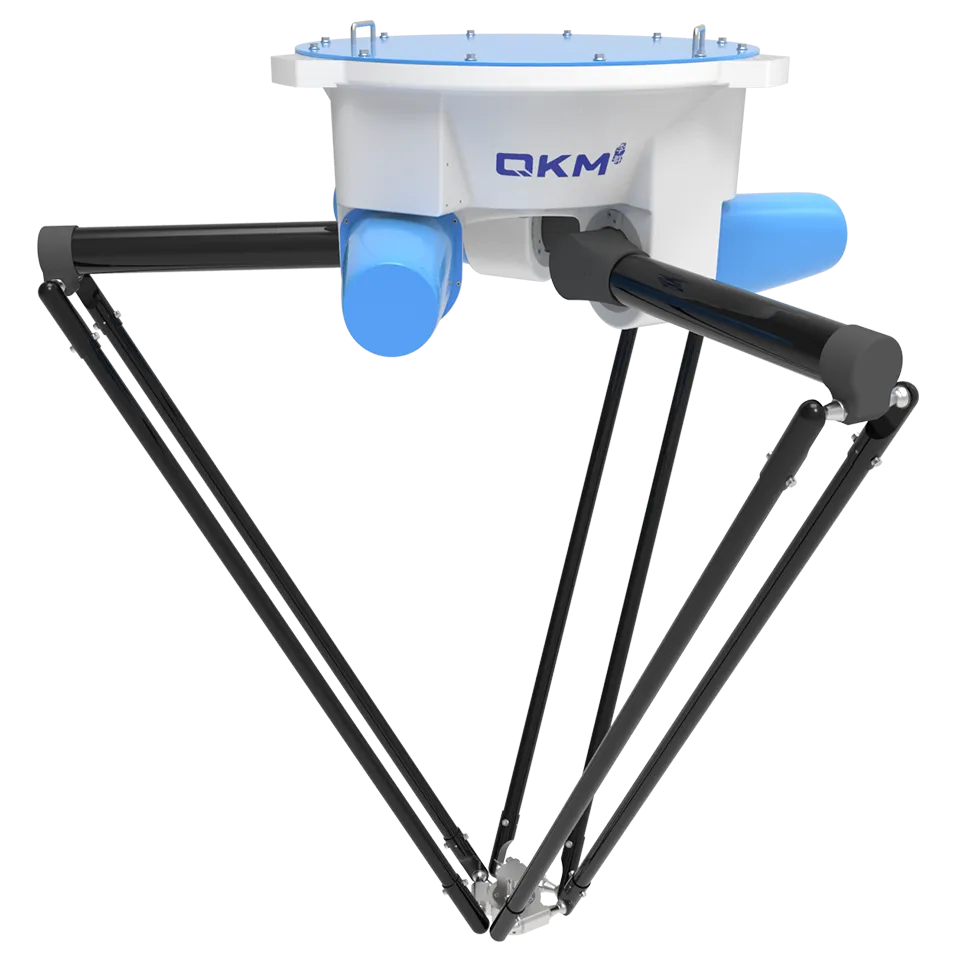

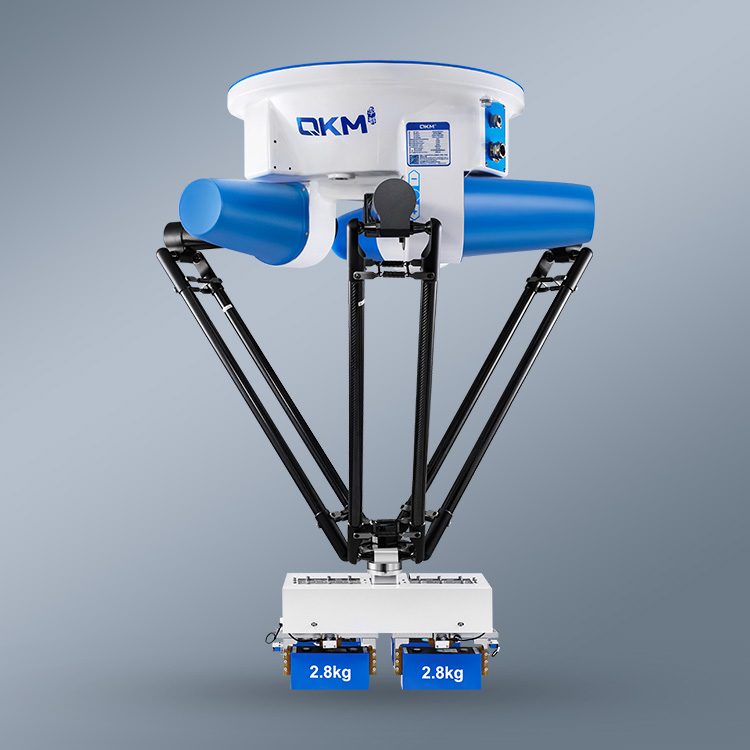

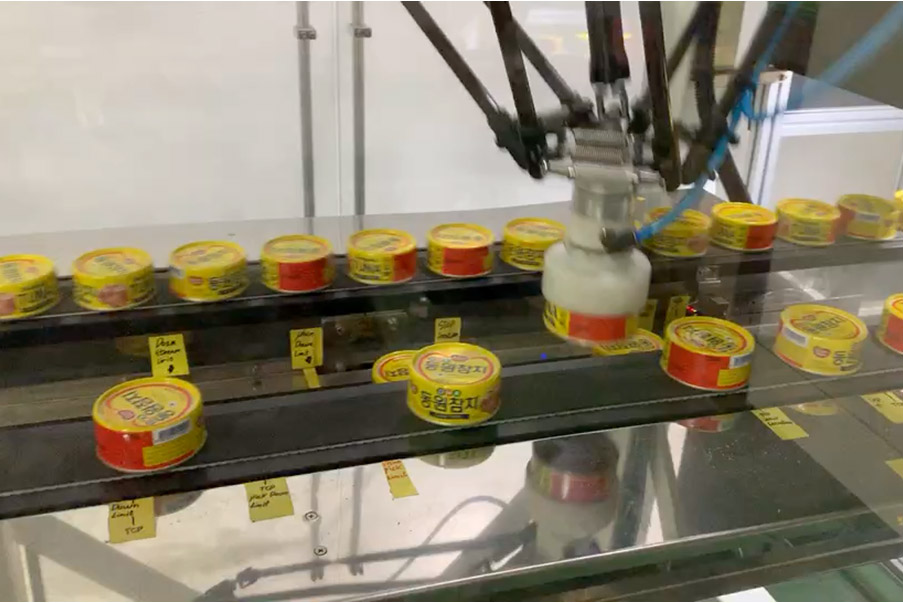

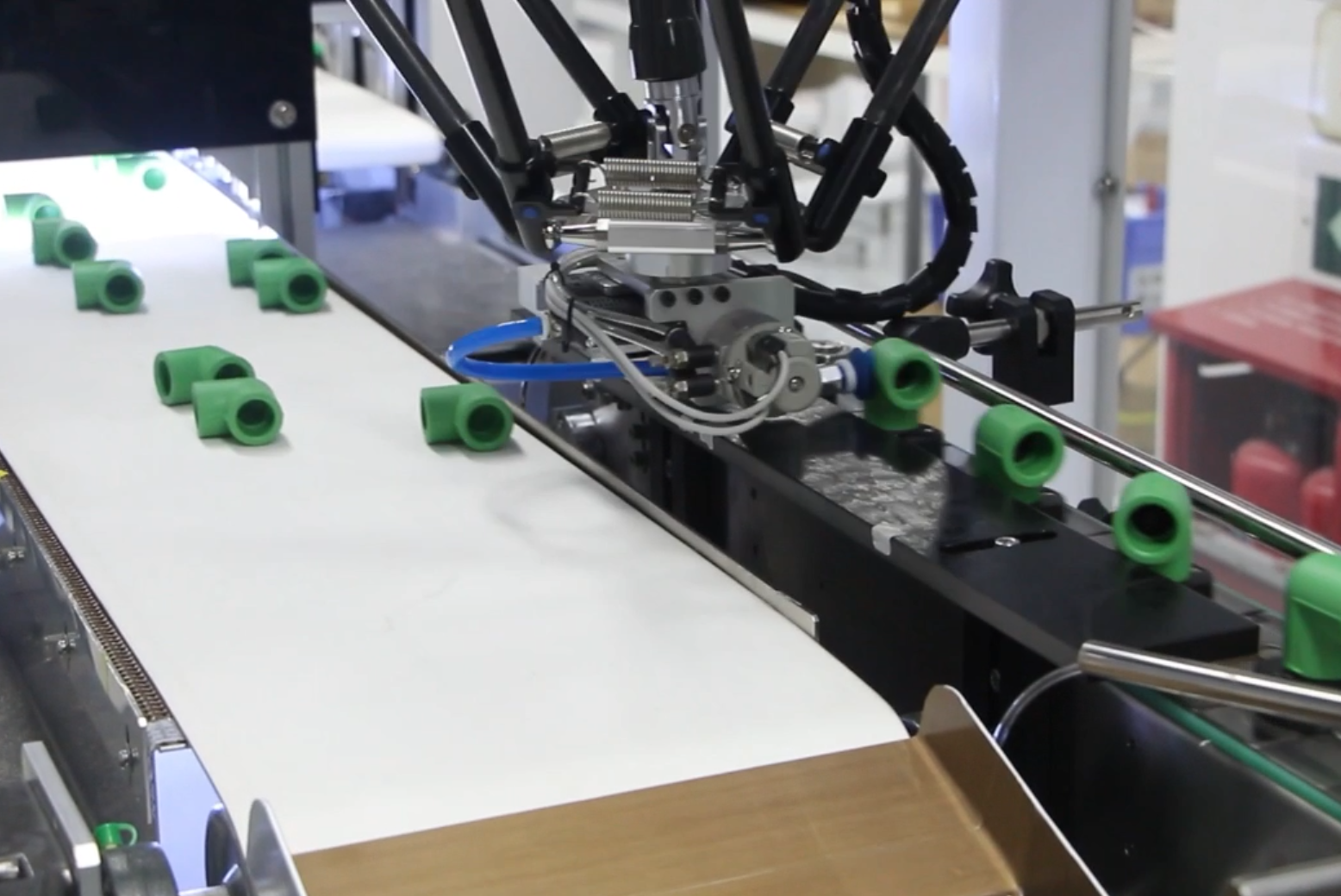

AP25X

Ultra-Large-Payload Large-Workspace Sorting Expert

"Designed for high-payload, high-cycle- rate applications, it delivers fast, precise, and stable motion performance, providing reliable automation for large-part production."

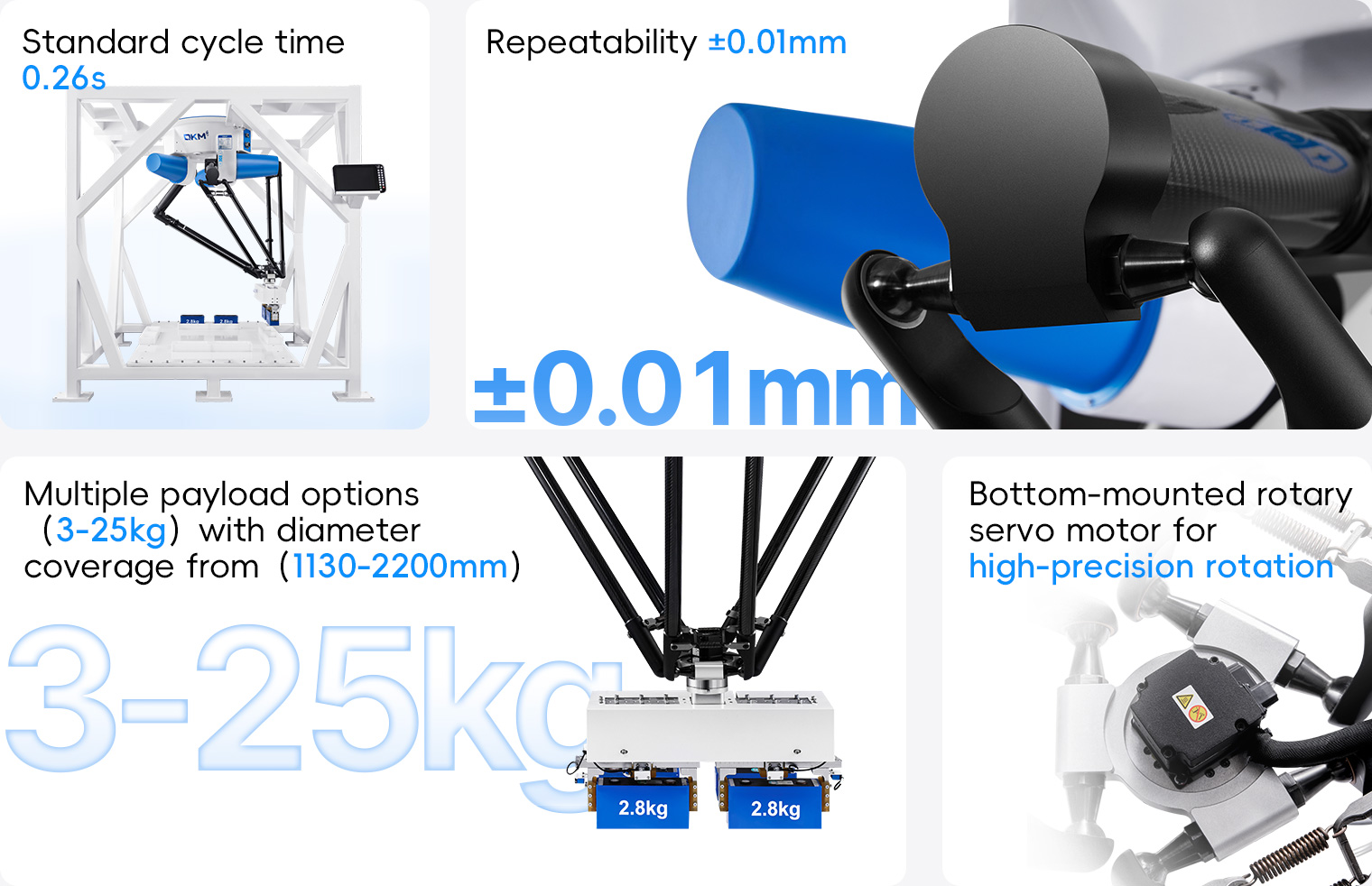

Product Features

Focusing on speed, accuracy, and stability to meet diverse automation needs.

Product Parameters

		AP25X-1130
Model		AP25X-1130-1543
Axis		3
Payload(Max.)		25kg
Working Range	Diameter	1130mm
	Vertical Height	410mm
	Rotation Angle	-
Standard Cycle Time *1		0.31s
Repeatability		±0.1mm
Angular Repeatability		-
Allowable Moment Of Inertia	Rated	-
	Max.	-
Installation Method		Inverted mounting
Weight		162 kg
IP Protection Class		IP54
I / O Interface*2		23 inputs and 18 outputs
Communication Interface		Ethernet，RS-232，RS-485，Modbus TCP，EtherNet/IP
Rated Voltage		380 Va.c.50/60 Hz
Rated Power		8kW
Working Environment		Ambient temperature: 0 ~ 45 ℃, relative humidity: ≤80% (No condensation)
1：Load 2kg, cycle time of round-trip arch motion (horizontal 305mm, vertical 25mm) (maximum speed optimal travel coordinates). 2: Protection type complies with IP65, optional. *3: I/O expansion is possible through Modbus TCP protocol.

		AP25X-1130
Model		AP25X-1130-1544
Axis		4
Payload(Max.)		25kg
Working Range	Diameter	1130mm
	Vertical Height	410mm
	Rotation Angle	±360°
Standard Cycle Time *1		0.33s
Repeatability		±0.1mm
Angular Repeatability		±0.1°
Allowable Moment Of Inertia	Rated	0.1 kg·㎡
	Max.	0.25 kg·㎡
Installation Method		Inverted mounting
Weight		163 kg
IP Protection Class		IP54
I / O Interface*2		23 inputs and 18 outputs
Communication Interface		Ethernet，RS-232，RS-485，Modbus TCP，EtherNet/IP
Rated Voltage		380 Va.c.50/60 Hz
Rated Power		8kW
Working Environment		Ambient temperature: 0 ~ 45 ℃, relative humidity: ≤80% (No condensation)
1：Load 2kg, cycle time of round-trip arch motion (horizontal 305mm, vertical 25mm) (maximum speed optimal travel coordinates). 2: Protection type complies with IP65, optional. *3: I/O expansion is possible through Modbus TCP protocol.

		AP25X-1400
Model		AP25X-1400-1544
Axis		4
Payload(Max.)		25kg
Working Range	Diameter	1400mm
	Vertical Height	390mm
	Rotation Angle	±360°
Standard Cycle Time *1		0.33s
Repeatability		±0.1mm
Angular Repeatability		±0.1°
Allowable Moment Of Inertia	Rated	0.08 kg·㎡
	Max.	0.15 kg·㎡
Installation Method		Inverted mounting
Weight		161 kg
IP Protection Class		IP54
I / O Interface*2		23 inputs and 18 outputs
Communication Interface		Ethernet，RS-232，RS-485，Modbus TCP，EtherNet/IP
Rated Voltage		380 Va.c.50/60 Hz
Rated Power		8kW
Working Environment		Ambient temperature: 0 ~ 45 ℃, relative humidity: ≤80% (No condensation)
1：Load 2kg, cycle time of round-trip arch motion (horizontal 305mm, vertical 25mm) (maximum speed optimal travel coordinates). 2: Protection type complies with IP65, optional. *3: I/O expansion is possible through Modbus TCP protocol.

		AP25X-1600
Model		AP25X-1600-1543
Axis		3
Payload(Max.)		25kg
Working Range	Diameter	1600mm
	Vertical Height	400mm
	Rotation Angle	-
Standard Cycle Time *1		0.31s
Repeatability		±0.1mm
Angular Repeatability		-
Allowable Moment Of Inertia	Rated	-
	Max.	-
Installation Method		Inverted mounting
Weight		164 kg
IP Protection Class		IP54
I / O Interface*2		23 inputs and 18 outputs
Communication Interface		Ethernet，RS-232，RS-485，Modbus TCP，EtherNet/IP
Rated Voltage		380 Va.c.50/60 Hz
Rated Power		8kW
Working Environment		Ambient temperature: 0 ~ 45 ℃, relative humidity: ≤80% (No condensation)
1：Load 2kg, cycle time of round-trip arch motion (horizontal 305mm, vertical 25mm) (maximum speed optimal travel coordinates). 2: Protection type complies with IP65, optional. *3: I/O expansion is possible through Modbus TCP protocol.

		AP25X-1600
Model		AP25X-1600-1544
Axis		4
Payload(Max.)		25kg
Working Range	Diameter	1600mm
	Vertical Height	400mm
	Rotation Angle	±360°
Standard Cycle Time *1		0.33s
Repeatability		±0.1mm
Angular Repeatability		±0.1°
Allowable Moment Of Inertia	Rated	0.1 kg·㎡
	Max.	0.25 kg·㎡
Installation Method		Inverted mounting
Weight		165 kg
IP Protection Class		IP54
I / O Interface*2		23 inputs and 18 outputs
Communication Interface		Ethernet，RS-232，RS-485，Modbus TCP，EtherNet/IP
Rated Voltage		380 Va.c.50/60 Hz
Rated Power		8kW
Working Environment		Ambient temperature: 0 ~ 45 ℃, relative humidity: ≤80% (No condensation)
1：Load 2kg, cycle time of round-trip arch motion (horizontal 305mm, vertical 25mm) (maximum speed optimal travel coordinates). 2: Protection type complies with IP65, optional. *3: I/O expansion is possible through Modbus TCP protocol.

		AP25X-2200
Model		AP25X-2200-1543
Axis		3
Payload(Max.)		25kg
Working Range	Diameter	2200mm
	Vertical Height	710mm
	Rotation Angle	-
Standard Cycle Time *1		0.32s
Repeatability		±0.1mm
Angular Repeatability		-
Allowable Moment Of Inertia	Rated	-
	Max.	-
Installation Method		Inverted mounting
Weight		166 kg
IP Protection Class		IP54
I / O Interface*2		23 inputs and 18 outputs
Communication Interface		Ethernet，RS-232，RS-485，Modbus TCP，EtherNet/IP
Rated Voltage		380 Va.c.50/60 Hz
Rated Power		8kW
Working Environment		Ambient temperature: 0 ~ 45 ℃, relative humidity: ≤80% (No condensation)
1：Load 2kg, cycle time of round-trip arch motion (horizontal 305mm, vertical 25mm) (maximum speed optimal travel coordinates). 2: Protection type complies with IP65, optional. *3: I/O expansion is possible through Modbus TCP protocol.

		AP25X-2200
Model		AP25X-2200-1544
Axis		4
Payload(Max.)		25kg
Working Range	Diameter	2200mm
	Vertical Height	710mm
	Rotation Angle	±360°
Standard Cycle Time *1		0.34s
Repeatability		±0.1mm
Angular Repeatability		±0.1°
Allowable Moment Of Inertia	Rated	0.1 kg·㎡
	Max.	0.25 kg·㎡
Installation Method		Inverted mounting
Weight		167 kg
IP Protection Class		IP54
I / O Interface*2		23 inputs and 18 outputs
Communication Interface		Ethernet，RS-232，RS-485，Modbus TCP，EtherNet/IP
Rated Voltage		380 Va.c.50/60 Hz
Rated Power		8kW
Working Environment		Ambient temperature: 0 ~ 45 ℃, relative humidity: ≤80% (No condensation)
1：Load 2kg, cycle time of round-trip arch motion (horizontal 305mm, vertical 25mm) (maximum speed optimal travel coordinates). 2: Protection type complies with IP65, optional. *3: I/O expansion is possible through Modbus TCP protocol.

		AP25X-2600
Model		AP25X-2600-1544
Axis		4
Payload(Max.)		25kg
Working Range	Diameter	2600mm
	Vertical Height	670mm
	Rotation Angle	±360°
Standard Cycle Time *1		0.37s
Repeatability		±0.1mm
Angular Repeatability		±0.1°
Allowable Moment Of Inertia	Rated	0.1 kg·㎡
	Max.	0.25 kg·㎡
Installation Method		Inverted mounting
Weight		169 kg
IP Protection Class		IP54
I / O Interface*2		23 inputs and 18 outputs
Communication Interface		Ethernet，RS-232，RS-485，Modbus TCP，EtherNet/IP
Rated Voltage		380 Va.c.50/60 Hz
Rated Power		8kW
Working Environment		Ambient temperature: 0 ~ 45 ℃, relative humidity: ≤80% (No condensation)
1：Load 2kg, cycle time of round-trip arch motion (horizontal 305mm, vertical 25mm) (maximum speed optimal travel coordinates). 2: Protection type complies with IP65, optional. *3: I/O expansion is possible through Modbus TCP protocol.
