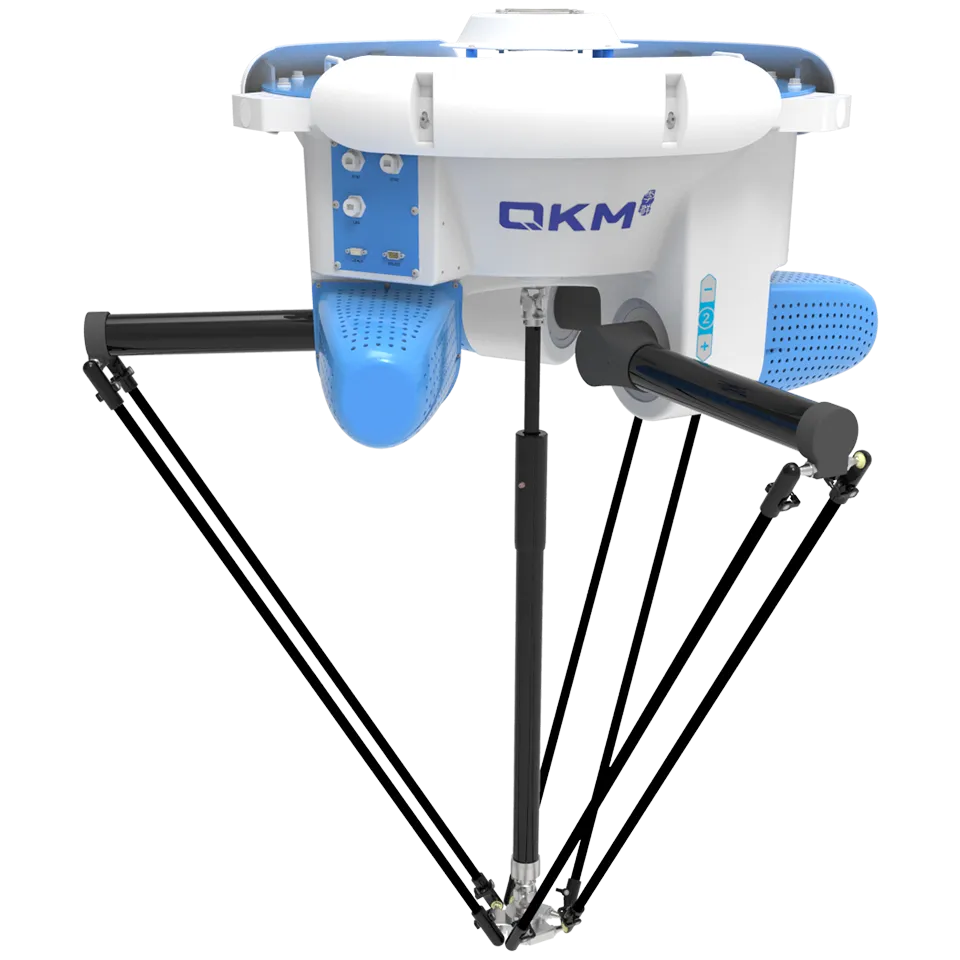

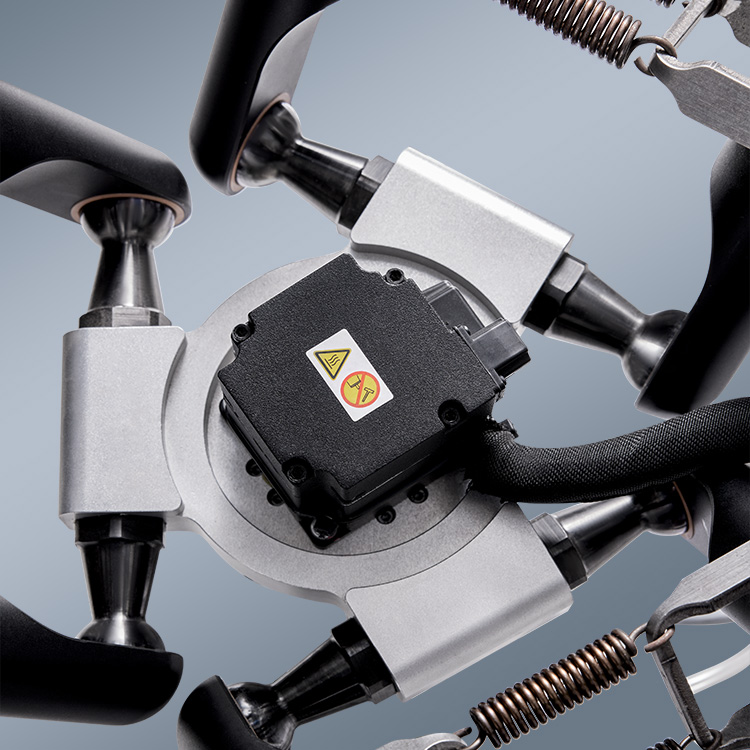

Product Features
Focusing on speed, accuracy, and stability to meet diverse automation needs.
Product Parameters
| AP8X-1130 | ||
| Model | AP8X-1130-1543 | |
| Axis | 3 | |
| Payload(Max.) | 8 kg | |
| Working Range | Diameter | 1130 mm |
| Vertical Height | 300 mm | |
| Rotation Angle | - | |
| Standard Cycle Time *1 | 0.25s | |
| Repeatability | ±0.1 mm | |
| Angular Repeatability | - | |
| Allowable Moment Of Inertia | Rated | - |
| Max. | - | |
| Installation Method | Inverted mounting | |
| Weight | 132 kg | |
| IP Protection Class*2 | IP54 | |
| I / O Interface*3 | 28 inputs and 18 outputs | |
| Communication Interface | Ethernet，RS-232，RS-485，Modbus TCP | |
| Rated Voltage | 230 V a.c. 50/60 Hz | |
| Rated Power | 2 kW | |
| Working Environment | Ambient temperature: 0 ~ 45 ℃, relative humidity: ≤95% (No condensation) | |
| *1：Load 3kg, cycle time of round-trip arch motion (horizontal 305mm, vertical 25mm) (maximum speed optimal travel coordinates). *2: Protection type complies with IP65, optional. *3: I/O expansion is possible through Modbus TCP protocol. |
||
| AP8X-1130 | ||
| Model | AP8X-1130-1544 | |
| Axis | 4 | |
| Payload(Max.) | 8 kg | |
| Working Range | Diameter | 1130 mm |
| Vertical Height | 300 mm | |
| Rotation Angle | ±360° | |
| Standard Cycle Time *1 | 0.27s | |
| Repeatability | ±0.1 mm | |
| Angular Repeatability | ±0.4° | |
| Allowable Moment Of Inertia | Rated | 0.1 kg·㎡ |
| Max. | 0.15 kg·㎡ | |
| Installation Method | Inverted mounting | |
| Weight | 137 kg | |
| IP Protection Class*2 | IP54 | |
| I / O Interface*3 | 28 inputs and 18 outputs | |
| Communication Interface | Ethernet，RS-232，RS-485，Modbus TCP | |
| Rated Voltage | 230 V a.c. 50/60 Hz | |
| Rated Power | 2 kW | |
| Working Environment | Ambient temperature: 0 ~ 45 ℃, relative humidity: ≤95% (No condensation) | |
| *1：Load 3kg, cycle time of round-trip arch motion (horizontal 305mm, vertical 25mm) (maximum speed optimal travel coordinates). *2: Protection type complies with IP65, optional. *3: I/O expansion is possible through Modbus TCP protocol. |
||
| AP8X-1600 | ||
| Model | AP8X-1600-1544 | |
| Axis | 4 | |
| Payload(Max.) | 8 kg | |
| Working Range | Diameter | 1600 mm |
| Vertical Height | 350 mm | |
| Rotation Angle | ±360° | |
| Standard Cycle Time *1 | 0.3s | |
| Repeatability | ±0.1 mm | |
| Angular Repeatability | ±0.4° | |
| Allowable Moment Of Inertia | Rated | 0.1 kg·㎡ |
| Max. | 0.15 kg·㎡ | |
| Installation Method | Inverted mounting | |
| Weight | 138 kg | |
| IP Protection Class*2 | IP54 | |
| I / O Interface*3 | 28 inputs and 18 outputs | |
| Communication Interface | Ethernet，RS-232，RS-485，Modbus TCP | |
| Rated Voltage | 230 V a.c. 50/60 Hz | |
| Rated Power | 2 kW | |
| Working Environment | Ambient temperature: 0 ~ 45 ℃, relative humidity: ≤95% (No condensation) | |
| *1：Load 3kg, cycle time of round-trip arch motion (horizontal 305mm, vertical 25mm) (maximum speed optimal travel coordinates). *2: Protection type complies with IP65, optional. *3: I/O expansion is possible through Modbus TCP protocol. |
||
| AP8X-1600 | ||
| 规格型号 | AP8X-1600-1544 | |
| 轴数 | 4 | |
| 最大负载 | 8 kg | |
| 最大运动范围 | 直径 | 1600 mm |
| 垂直高度 | 350 mm | |
| 旋转角度 | ±360° | |
| 标准节拍周期*1 | 0.3s | |
| 重复定位精度 | ±0.1 mm | |
| 角度重复定位精度 | ±0.2° | |
| 允许转动惯量 | 额定 | 0.1 kg·㎡ |
| 最大 | 0.15 kg·㎡ | |
| 安装方式 | 倒装 | |
| 整机重量 | 138 kg | |
| IP 防护等级*2 | IP54 | |
| I/O接口*3 | 28路输入，18路输出 | |
| 通讯接口 | Ethernet，RS-232，RS-485，Modbus TCP，EtherNet/IP | |
| 额定电压 | 230 V a.c. 50/60 Hz | |
| 额定功率 | 2 kW | |
| 工作环境 | 环境温度:0~45℃,相对湿度:10%~80%(无冷凝) | |
| *1:负载 3 kg 下，往返拱形运动（水平 305mm 、垂直 25mm ）的循环时间（最大速度最优行程坐标）。 *2:防护型符合IP65，选配。 *3:通过Modbus TCP协议可进行I/O扩展。 |
||
Product Drawings
