Product Features
Focusing on speed, accuracy, and stability to meet diverse automation needs.
Product Parameters
| Model | CR6-0900-200D | |
| Body Dimension (L*W*H) | 900*600*850 | |
| Max Platform Load(max) | ≥200kg | |
| Max End-effector Load（max) | 6kg | |
| Operating Speed | AMR Moving Speed | ≤1.5m/s |
| Max Composite Speed of Robot | ≤1000mm/s | |
| Accuracy | Comprehensive Accuracy | ≤±0.3mm |
| Robot Repeatability | ≤±0.05mm | |
| Parking Accuracy | QR：±5mm； SLAM：±10mm； Angle：±1° |
|
| Robot Reach（mm） | 900mm | |
| Battery Performance | Battery Voltage & Capacity | 48V40AH |
| Endurance Time | 9h | |
| Charging Time | ≤2h | |
| Cycle Life (Cycles) | ≥1500 @80%DOD | |
| Vision Module | End-of-arm Camera | Optional design according to scenarios |

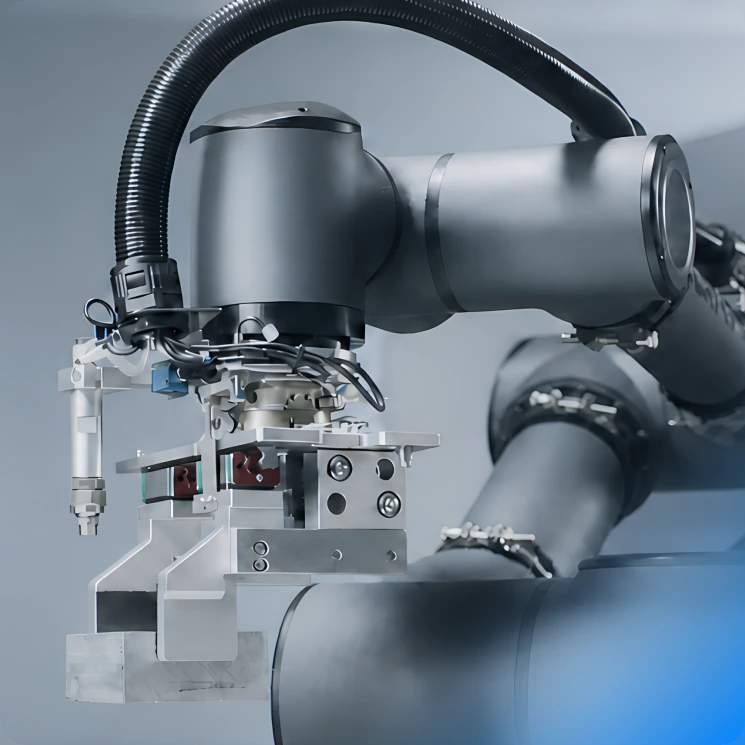

| Gripper Module | End-of-arm Gripper | Optional design based on products and scenarios |
| Charging Module | Intelligent Charging Pile | Contact-type intelligent charging pile |
| Voltage | AC 220V | |
| Power | 3.2KW | |
Product Drawings
Download
