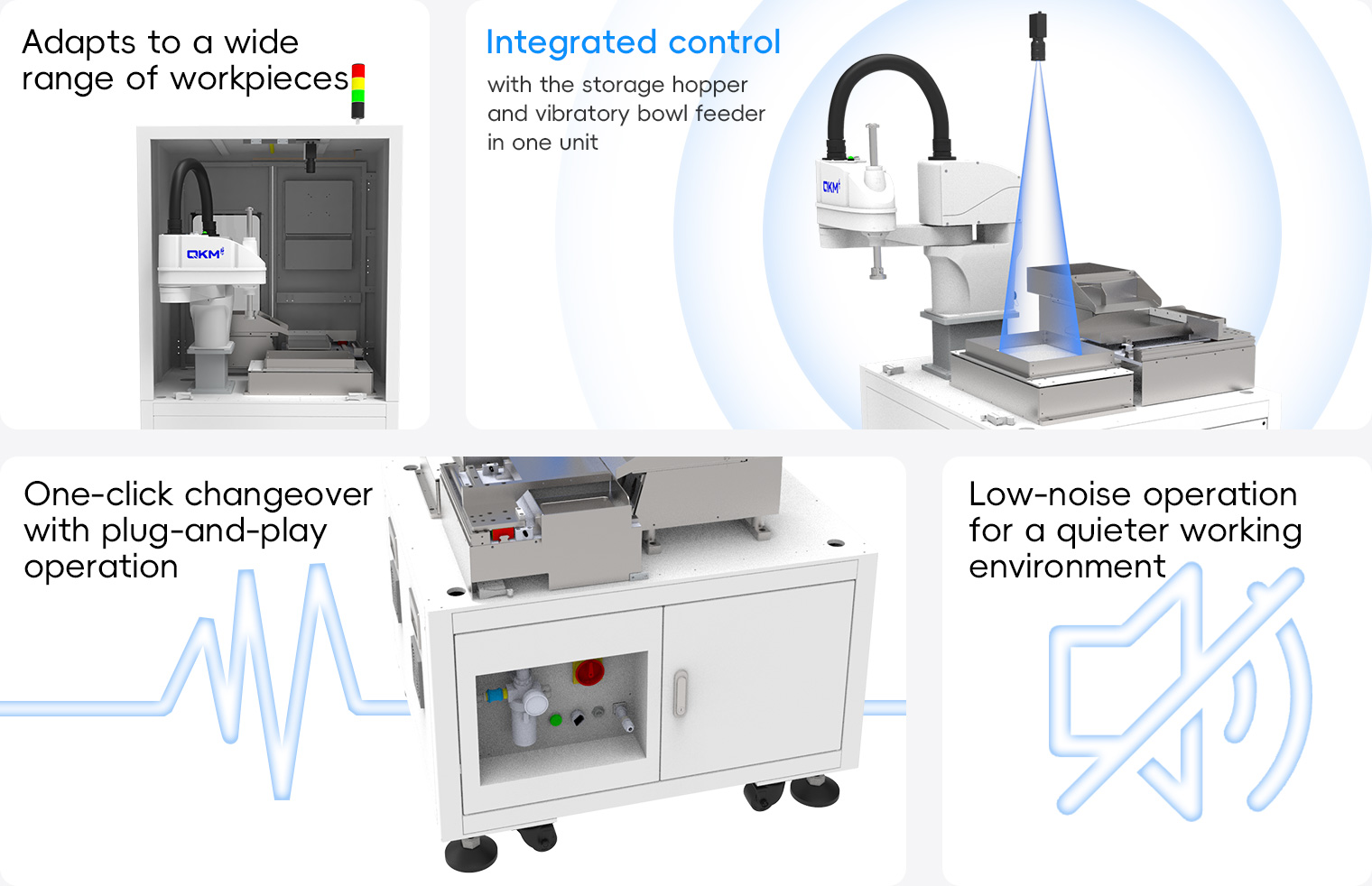

Product Features
Focusing on speed, accuracy, and stability to meet diverse automation needs.
Product Parameters
| Model name | QFS-AH61-3224 | Standard / Optional | |
| Robot*1 | AH6-0600-0204-2000 | Standard | |
| Vibrating Plate*2 | QFF-3224 | ||
| Hopper*3 | QFA-3L | ||
| Dimensions | 长 1000mm*宽 850mm*高 1850mm | ||
| Controlling system | FlexSorter | ||
| Vision | Top 20MP Camera | ||
| Top Camera Light | Optional | ||
| Bottom Correction 5MP Camera | |||
| Grippers | Rotary type (max. 4 pcs) | ||
| Non-rotary type (max. 4 pcs) | |||
| External Interfaces | Tray arranging machine, conveyor line, customer fixture (assembly applications), etc. | ||
| *1: Robots with other specifications are optional. Please consult sales staff for price differences. *2: Flexible vibration trays of other specifications are optional. Please consult sales staff for price differences. *3: Storage hoppers of other specifications are optional. Please consult sales staff for price differences. |
|||
