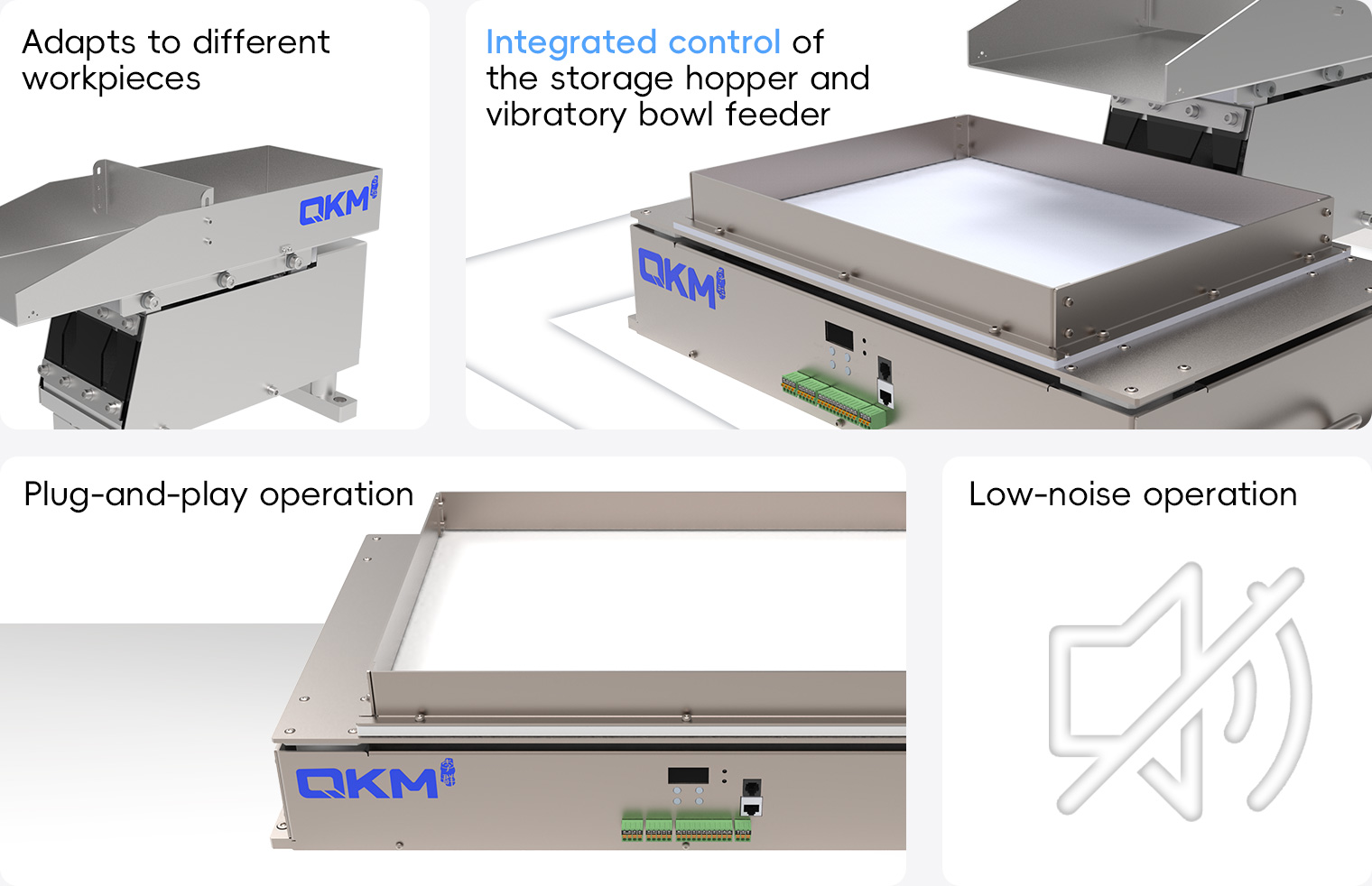

Product Features
Focusing on speed, accuracy, and stability to meet diverse automation needs.
Product Parameters
| Flexible Vibrating Plate Specifications | |||||
| Model | QFF-2016 | QFF-2620 | QFF-3224 | QFF-3929 | QFF-4735 |
| Panel length A | 200 mm | 260 mm | 320 mm | 390 mm | 470 mm |
| Panel length B | 160 mm | 200 mm | 240 mm | 290 mm | 350 mm |
| Panel length C | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Total length L | 340 mm | 445 mm | 505 mm | 575 mm | 655 mm |
| Total height W | 185 mm | 225 mm | 265 mm | 315 mm | 375 mm |
| Total height H | 135 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Power | 90 W | 120 W | 120 W | 120 W | 120 W |
| Vibration load | 0.5 kg | 1.5 kg | 1.5 kg | 1.5 kg | 1.5 kg |
| Amplitude | ±1 mm | ±5 mm | ±5 mm | ±5 mm | ±5 mm |
| Weight | 4 kg | 8 kg | 9 kg | 11 kg | 16 kg |
| Customizable panel structure | Plate/Hole/Groove/Teeth/Custom | ||||
| Electrical parameter | DC input 24V-16.5A | ||||
| Electrical parameter-Storage bin | AC 15V~20V | ||||
| Backlight color | Standard white，Optional: Red / Blue / Green | ||||
| External Control Modes | I/O: Passive I/O Trigger RS485 Serial Port: Modbus-RTU Ethernet Port: Modbus-TCP |
||||
| Storage Bin Specifications | |||
| Model | QFA-2L | QFA-3L | QFA-4L |
| Bin length A | 240 mm | 240 mm | 260 mm |
| Bin width B | 180 mm | 210 mm | 240 mm |
| Bin depth C | 70 mm | 80 mm | 80 mm |
| Total length L | 400 mm | 400 mm | 400 mm |
| Total width B/W | 180/200 mm | 210/200 mm | 240/200 mm |
| Total height H | 280 mm | 290 mm | 290 mm |
| Power | 120 W | 120 W | 120 W |
| Storage volume | 2 L | 3 L | 4 L |
| Amplitude | ±1 mm | ±1 mm | ±1 mm |
| Weight | 33 kg | 34 kg | 38 kg |
| Bin material | 304不锈钢/防静电材料/赛钢/定制 304 stainless steel/antistatic material/POM/ customizable |
||
| Electrical parameter | AC15V-2A | ||
| Vibration frequency | 10~40Hz | ||
| Material shortage detection | With material shortage sensor alarm | ||
