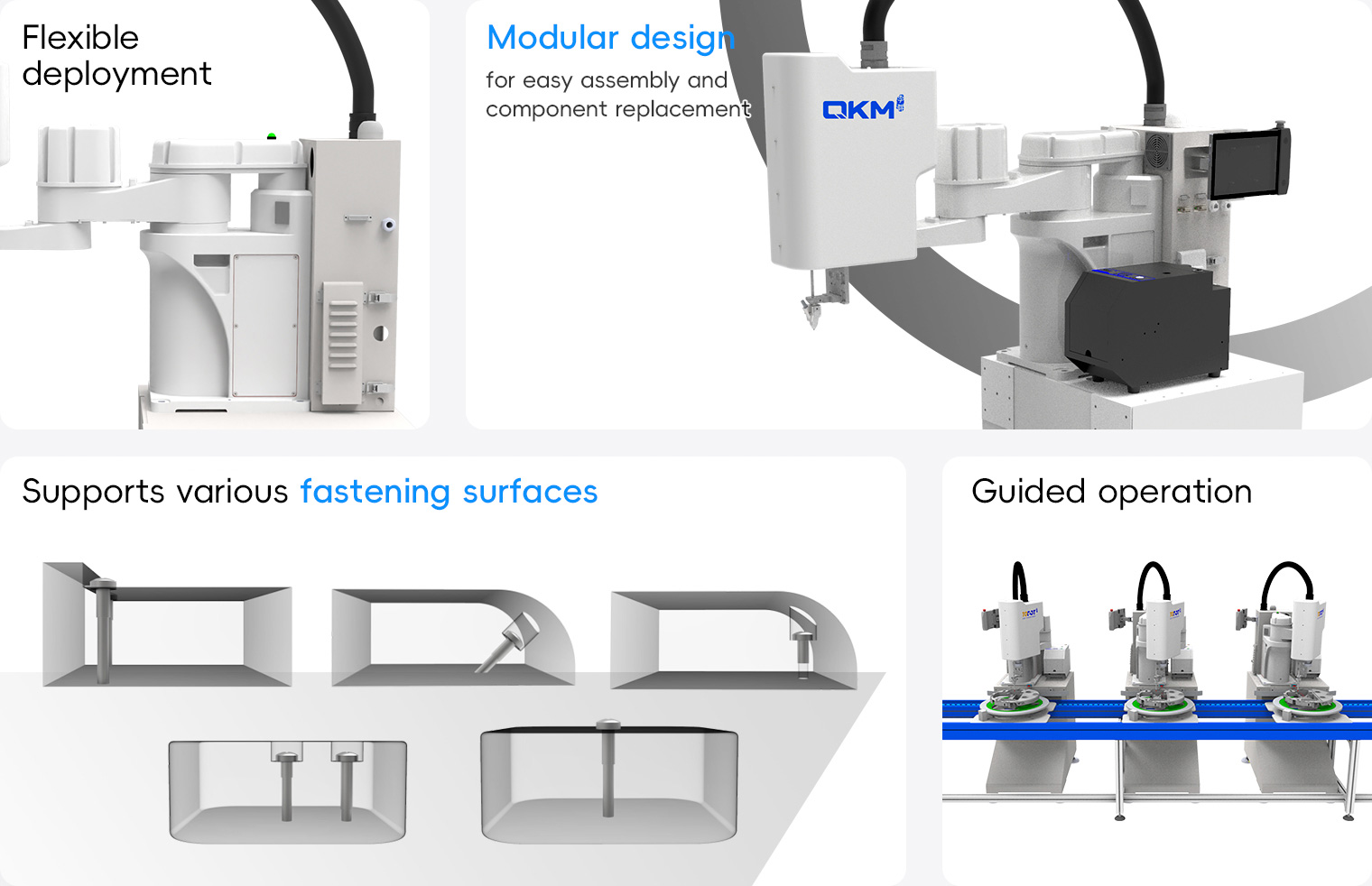

Product Features
Focusing on speed, accuracy, and stability to meet diverse automation needs.
Product Parameters
| Specifications and models | TM8-BH-060 |
| Electric batch model*1 | Intelligent electric batch |
| Standard vision system | √ |
| Nail supply method | hose blowing |
| screw length-to-diameter ratio | >2 |
| Screw Diameter Compatibility | M2~M4 |
| Tightening Torque Range | 0.1N.m~0.9 N.m |
| Standard Cycle Time | 0.3s |
| Screw Feeding Efficiency | 0.35s |
| Programmable Tightening Procedures | √ |
| Torque Display | √ |
| Working Range² | Radius 600 mm |
| Working Surface Height（Above Ground）³ | 700~1000 mm |
| Power Consumption | 2.2 kW |
| Z-axis Travel | 120 mm |
| Built-in Floating Height Sensing | √ |
| Built-in Thread Slipping Sensing | √ |
| *1：Users can specify the brand and model of the electric screwdriver. *2：The working radius of the screwdriver is based on the robot's origin point. *3：The working height can be customized based on the customer's production line height. |
|
