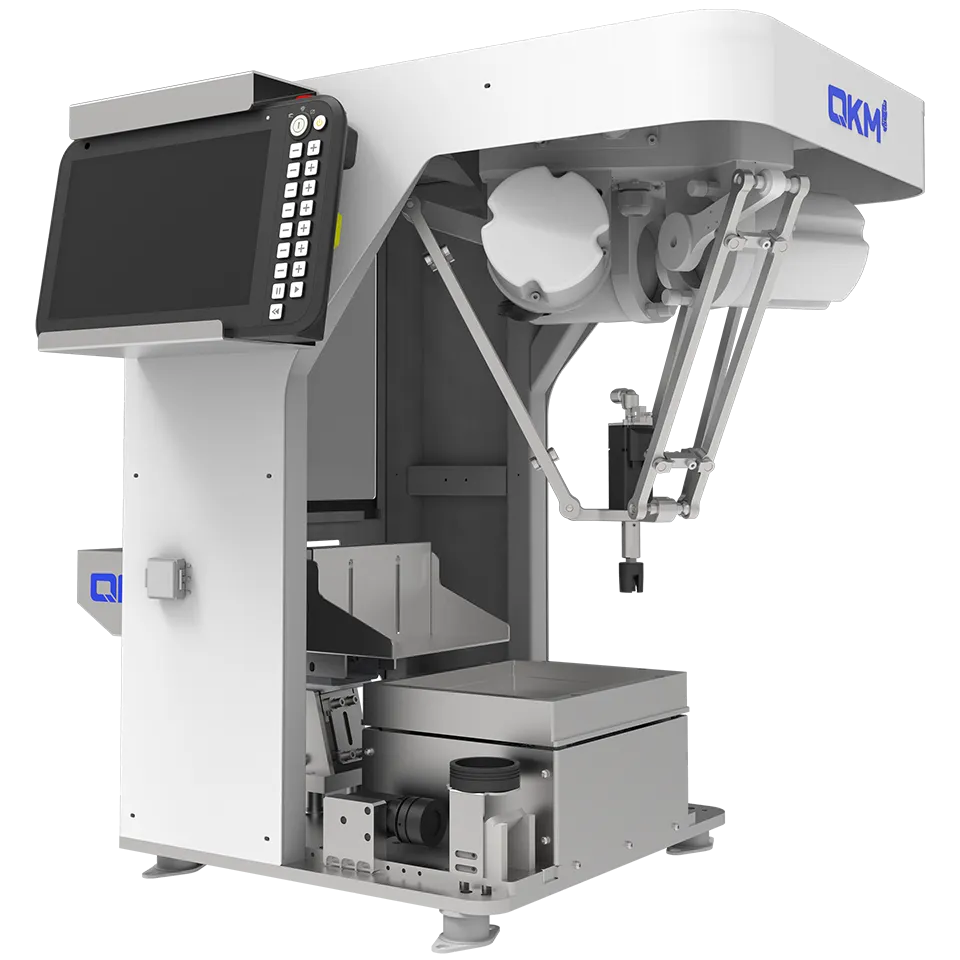

Parallel FlexSorter Module

Safe Hassle-Free Efficient Flexible

"Integrating delta robots, intelligent vision, and flexible control technologies, it automates the entire process from identification and picking to sorting, helping businesses quickly build high-speed, high-precision, and highly flexible intelligent sorting lines."

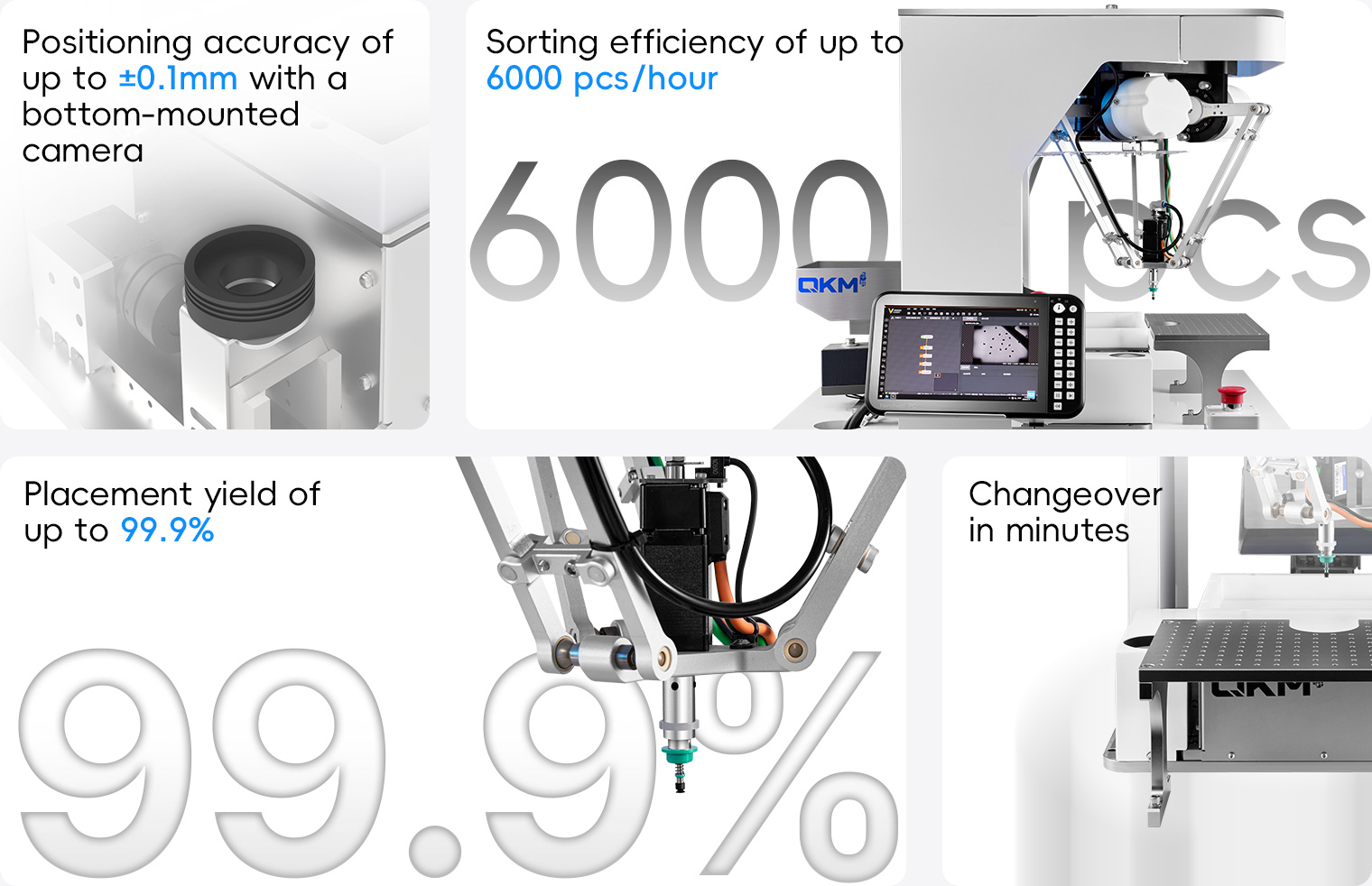

Product Features

Focusing on speed, accuracy, and stability to meet diverse automation needs.

Product Parameters

Model		QFSM-AP11-2016
Applicable Product Size		0.5-20 mm
Total Tray Load		0.5
Hopper Capacity		3L
Efficiency(UPH)	Without Bottom Camera	4500
	With Bottom Camera	3000
Placement Accuracy	Without Bottom Camera	±0.4mm
	With Bottom Camera	±0.1mm
Placement Range（mm）		250*130
Equipment Dimension（mm）		485400630
Tray Size（mm）		200*160
Vision Parameters	Top Camera	1200 Megapixels
	Bottom Camera	Optional: 1.3 Megapixel or 6 Megapixel
Voltage		AC 220V
Power		600W
Input Air Pressure		0.4-0.6Mpa
Air Supply Pipe Diameter		6mm
