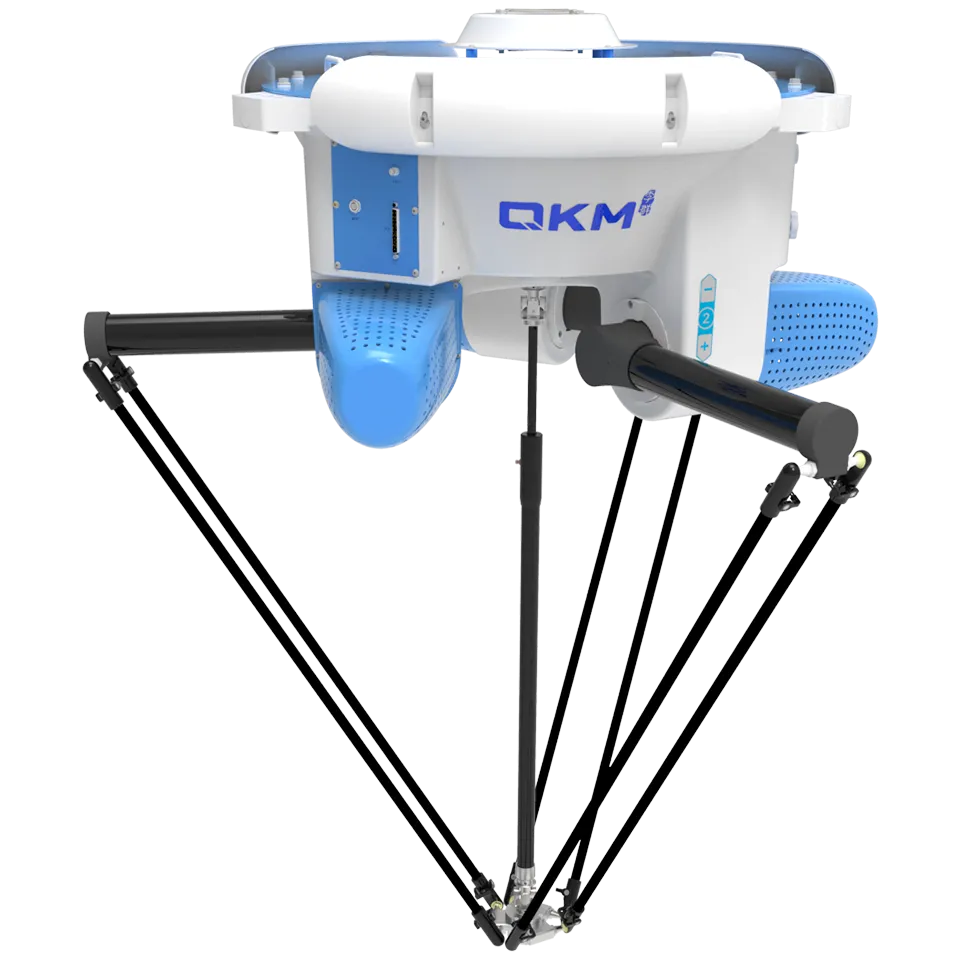

Product Features

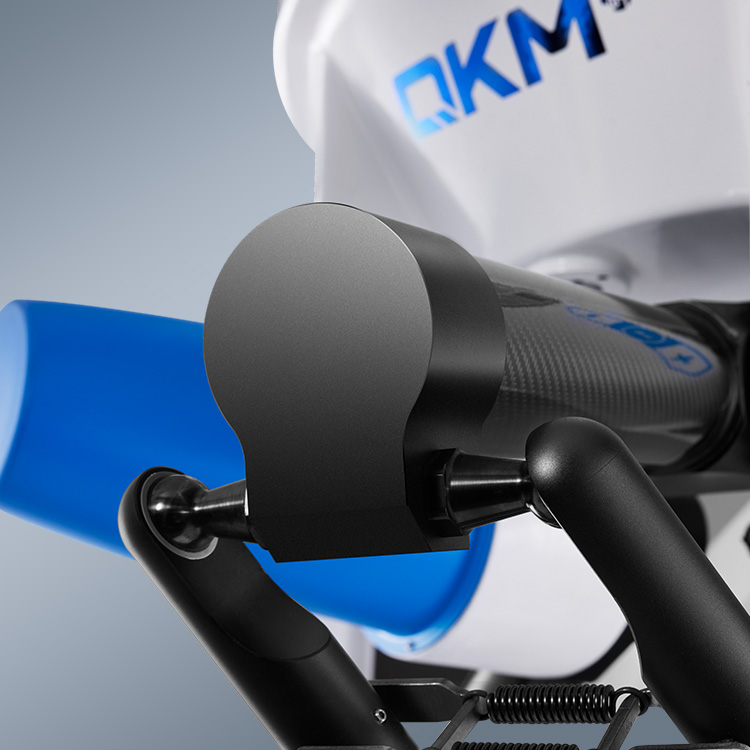

Focusing on speed, accuracy, and stability to meet diverse automation needs.
Product Parameters
| AP3X-1130 | ||
| Model | AP3X-1130-1543 | |
| Axis | 3 | |
| Payload (Max.) | 3 kg | |
| Working Range | Diameter | 1130 mm |
| Vertical Height | 300 mm | |
| Rotation Angle | - | |
| Standard Cycle Time*1 | 0.26s | |
| Repeatability | ±0.1 mm | |
| Angular Repeat Positioning Accuracy | - | |
| Allowable Moment of Inertia | Rated | - |
| Max. | - | |
| Mounting | Inverted mounting | |
| Weight | 132 kg | |
| IP Protection Class （Clean *2） |
IP54 | |
| I / O Interface*3 | 28 inputs and 18 outputs | |
| Communication Interface | Ethernet，RS-232，RS-485，Modbus TCP | |
| Rated Voltage | 230 V a.c. 50/60 Hz | |
| Rated Power | 2 kW | |
| Working Environment | Ambient temperature: 0 ~ 45 ℃, relative humidity:≤95% (no condensation) | |
| *1：Load 1kg, cycle time of round-trip arch motion (horizontal 305mm, vertical 25mm) (maximum speed optimal travel coordinates) *2：Protection type complies with IP65,optional *3：IO expansion via Modbus TCP protocol |
||
| AP3X-1130 | ||
| Model | AP3X-1130-1544 | |
| Axis | 4 | |
| Payload (Max.) | 3 kg | |
| Working Range | Diameter | 1130 mm |
| Vertical Height | 300 mm | |
| Rotation Angle | ±360° | |
| Standard Cycle Time*1 | 0.29s | |
| Repeatability | ±0.1 mm | |
| Angular Repeat Positioning Accuracy | ±0.2° | |
| Allowable Moment of Inertia | Rated | 0.01 kg·m² |
| Max. | 0.03 kg·m² | |
| Mounting | Inverted mounting | |
| Weight | 137 kg | |
| IP Protection Class （Clean *2） |
IP54 | |
| I / O Interface*3 | 28 inputs and 18 outputs | |
| Communication Interface | Ethernet，RS-232，RS-485，Modbus TCP | |
| Rated Voltage | 230 V a.c. 50/60 Hz | |
| Rated Power | 2 kW | |
| Working Environment | Ambient temperature: 0 ~ 45 ℃, relative humidity:≤95% (no condensation) | |
| *1：Load 1kg, cycle time of round-trip arch motion (horizontal 305mm, vertical 25mm) (maximum speed optimal travel coordinates) *2：Protection type complies with IP65,optional *3：IO expansion via Modbus TCP protocol |
||
| AP3X-1600 | ||
| Model | AP3X-1600-1543 | |
| Axis | 3 | |
| Payload (Max.) | 3kg | |
| Working Range | Diameter | 1600 mm |
| Vertical Height | 1600 mm | |
| Rotation Angle | / | |
| Standard Cycle Time*1 | 0.27s | |
| Repeatability | ±0.1 mm | |
| Angular Repeat Positioning Accuracy | / | |
| Allowable Moment of Inertia | Rated | / |
| Max. | / | |
| Mounting | Inverted mounting | |
| Weight | 133 kg | |
| IP Protection Class （Clean *2） |
IP54 | |
| I / O Interface*3 | 28 inputs and 18 outputs | |
| Communication Interface | Ethernet，RS-232，RS-485，Modbus TCP | |
| Rated Voltage | 230 V a.c. 50/60 Hz | |
| Rated Power | 2 kW | |
| Working Environment | Ambient temperature: 0 ~ 45 ℃, relative humidity:≤95% (no condensation) | |
| *1：Load 1kg, cycle time of round-trip arch motion (horizontal 305mm, vertical 25mm) (maximum speed optimal travel coordinates) *2：Protection type complies with IP65,optional *3：IO expansion via Modbus TCP protocol |
||
| AP3X-1600 | ||
| Model | AP3X-1600-1544 | |
| Axis | 4 | |
| Payload (Max.) | 3 kg | |
| Working Range | Diameter | 1600 mm |
| Vertical Height | ||
| Rotation Angle | ±360° | |
| Standard Cycle Time*1 | 0.28s | |
| Repeatability | ±0.1 mm | |
| Angular Repeat Positioning Accuracy | ±0.2° | |
| Allowable Moment of Inertia | Rated | 0.01 kg·m² |
| Max. | 0.03 kg·m² | |
| Mounting | Inverted mounting | |
| Weight | 138 kg | |
| IP Protection Class （Clean *2） |
IP54 | |
| I / O Interface*3 | 28 inputs and 18 outputs | |
| Communication Interface | Ethernet，RS-232，RS-485，Modbus TCP | |
| Rated Voltage | 230 V a.c. 50/60 Hz | |
| Rated Power | 2 kW | |
| Working Environment | Ambient temperature: 0 ~ 45 ℃, relative humidity:≤95% (no condensation) | |
| *1：Load 1kg, cycle time of round-trip arch motion (horizontal 305mm, vertical 25mm) (maximum speed optimal travel coordinates) *2：Protection type complies with IP65,optional *3：IO expansion via Modbus TCP protocol |
||
Product Drawings
